A gutter can look perfectly level from the ground and still fail in heavy rain. Water left standing in the run brings staining, overflowing joints, debris build-up and unnecessary load on the brackets. Knowing how to measure gutter fall before the first fascia bracket is fixed is a straightforward way to avoid those problems. Call our knowledgeable staff at Guttersdirectonline for help.

For domestic and commercial aluminium rainwater systems alike, the principle is simple: the gutter must fall gradually towards the outlet. The practical detail lies in setting the correct high point, calculating the drop over the run and allowing for the gutter profile, outlet position and roof area.

What gutter fall means

Gutter fall is the slight downward gradient along a gutter run that moves rainwater towards a running outlet and downpipe. It is usually expressed as a ratio, such as 1:600, or as a drop in millimetres per metre.

A 1:600 fall means the gutter drops 1mm for every 600mm of horizontal distance. On a 6m run, that equates to a 10mm drop from the highest bracket to the outlet end. It is a shallow slope, but it is enough to encourage drainage without making the gutter line look visibly out of level against the fascia or eaves.

The right fall is not a substitute for correct capacity. A small domestic half-round gutter serving a modest roof has different requirements from a 200mm x 150mm pressed aluminium box gutter serving a commercial elevation. Profile size, roof pitch, catchment area, number of outlets and local exposure all affect the drainage design. Always follow the requirements for the particular gutter system and project specification.

How to measure gutter fall before fitting

Start by deciding where the water will leave the gutter. A single-outlet run falls towards one end. A run with an outlet in the centre falls from each end towards the middle. Long elevations may need several outlets, particularly where a large roof area or valley directs a high volume of water into one section.

Measure the horizontal length of each individual run with a tape measure. Do not use the gutter length alone if the fascia steps around corners or if there are separate sections divided by stop ends and outlets. Record the distance in metres, then multiply it by the selected fall per metre.

For example, if the installation guidance calls for a fall of 2mm per metre and the run is 8m long:

8m x 2mm = 16mm total fall

The bracket at the high end should therefore sit 16mm higher than the bracket at the outlet end. If the run falls to a central outlet, calculate each side separately. A 10m elevation with the outlet exactly in the middle creates two 5m runs. At 2mm per metre, each end is set 10mm higher than the outlet position.

A practical site rule is to keep the calculation visible on the fascia board or in the fitting notes. It prevents small errors being repeated along the length of the run, especially where more than one operative is setting brackets.

Choosing a suitable gradient

Many gutter systems are installed to a very shallow fall, often around 1:600 as a minimum design gradient. In day-to-day setting out, a fall of around 2mm to 3mm per metre is commonly easier to establish accurately and gives positive drainage where the system specification permits it.

More fall is not automatically better. A steep slope can look poor on a short fascia, make one end of the gutter sit awkwardly against the eaves and affect the visual lines of a period property. On heritage work, where cast aluminium profiles and ornamental hopper heads are selected to retain architectural character, the gutter should drain properly without drawing attention to its gradient.

Conversely, setting a gutter too level is a common cause of standing water. Aluminium is corrosion resistant, but water and sediment sitting in any gutter will encourage dirt accumulation and can reduce its effective capacity. The aim is a controlled, consistent fall rather than a dramatic angle.

Setting out the high and low bracket positions

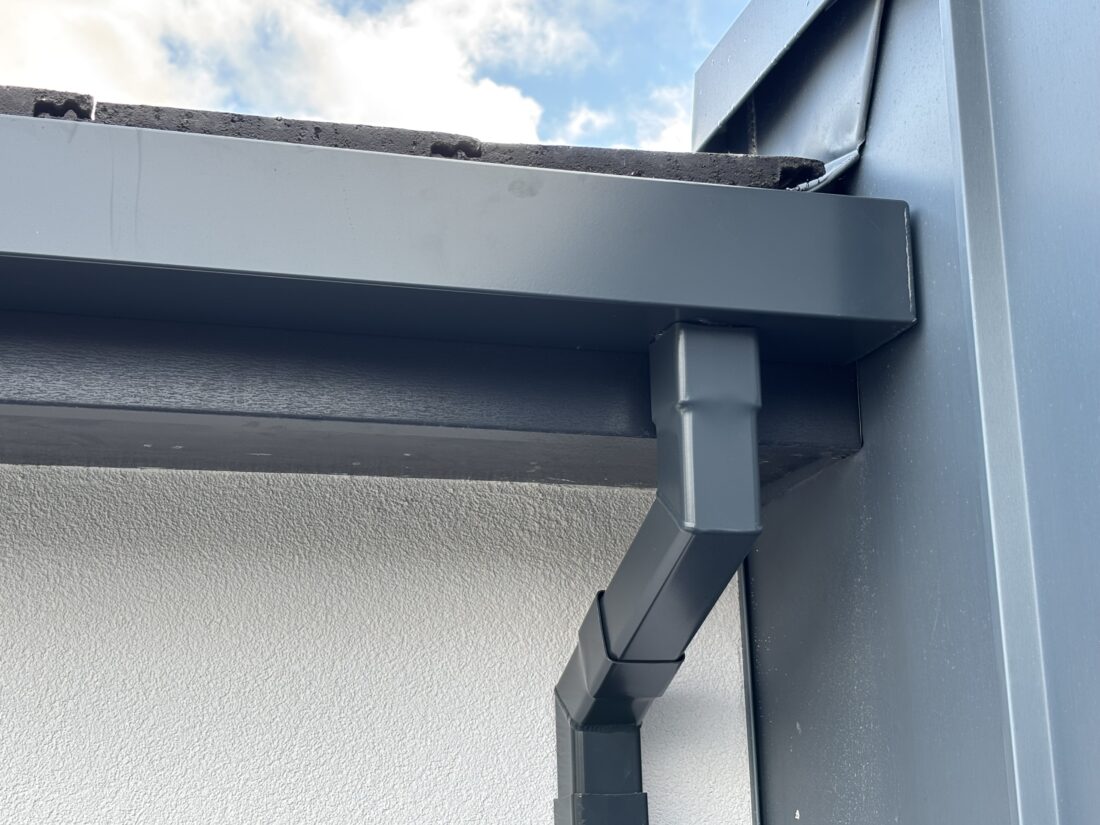

Fit or temporarily mark the running outlet first. This gives a fixed reference point for the low end of a single-fall run. Check that the outlet is positioned to suit the downpipe route, including bends, hopper heads, gullies and any clearance needed around windows, doors or architectural details.

Mark the outlet-side bracket position at the required height. Then measure the calculated total fall upwards at the opposite end of the run and mark the high bracket. Use a laser level, string line or long spirit level to transfer those positions along the fascia.

A laser level is usually the quickest option on long, straight commercial elevations. Set a level datum line, measure down to the outlet bracket position, then measure down progressively less at each bracket position as you move towards the high end. This makes the intended fall easy to check before drilling.

For shorter domestic runs, a taut string line between the two end marks works well. Measure from the string to each bracket mark to confirm a smooth, even descent. Do not rely solely on the fascia board being straight. Older timber fascias, rendered eaves and uneven masonry can vary considerably over a few metres.

Spacing brackets without losing the fall

Once the two end positions are established, divide the run according to the bracket centres specified for the gutter profile. Cast aluminium, extruded aluminium, seamless ogee and pressed box gutter systems can have different fixing arrangements, bracket types and support requirements.

Mark every bracket position before fitting. The drop between individual brackets is calculated by dividing the total fall by the number of spaces between brackets, not the number of brackets themselves. For instance, a 12mm total fall across six equal spaces means each successive bracket is 2mm lower than the previous one.

Extra support is normally required near outlets, angles, stop ends and joints because these areas carry greater weight or experience movement. Position these brackets in line with the system instructions, then adjust the intermediate bracket marks to maintain the same overall gradient. For continuous seamless aluminium guttering, the lack of running joints reduces potential leak points, but the fall and support spacing still need to be set accurately.

Check the roof line, not just the fascia

The gutter should be positioned so water leaves the roof and enters the channel reliably. As a general guide, the front edge of the gutter is set slightly lower than the rear edge, helping excess water overflow away from the building rather than back towards the fascia if a blockage occurs.

Check the relationship between the roof covering and gutter at several points along the run. A roof edge that projects too far into the gutter can restrict flow and hold leaves. If it stops short, fast-moving rain can overshoot the gutter. This is particularly relevant on steep roofs, exposed sites and roofs discharging into valley outlets.

Where the fascia itself is uneven or unsuitable for direct fixing, resolve the fixing background before installing the gutter. Packing out brackets individually to follow a poor line can create a wavy run and make accurate fall difficult to maintain. Sound fascias, correctly placed rafter brackets or a designed support detail provide a better result.

Test the fall before completing the system

Before finalising all bolts, clips and jointing details, pour a controlled amount of water into the high end of the gutter. Watch for pooling, slow sections and water tracking behind the gutter. The test should show a clear movement towards the outlet without water sitting at joints or low spots.

If water stalls in one area, check the bracket line with the laser or string rather than assuming the outlet is blocked. One bracket set a few millimetres too high can create a local dip. Correct it before the system is fully sealed and the access equipment has been removed.

Also test the downpipe route. Water should pass cleanly through the outlet, bends and hopper head where fitted, then discharge to the intended drainage point. A correctly graded gutter cannot compensate for an undersized downpipe, a poorly aligned outlet or a blocked gully.

When standard gutter fall needs more thought

A simple single run on a house extension is usually easy to set out. Larger or more complex schemes deserve a drainage calculation and a planned outlet layout before materials are ordered. This includes wide commercial roofs, parapet and box-gutter applications, internal valley drainage, buildings with long uninterrupted eaves and projects where downpipe locations are restricted.

Snow loading, roof valleys, nearby trees and intense rainfall exposure can all increase the demand on a gutter. In those cases, increasing profile capacity or adding outlets may be more effective than increasing the fall alone. Aluminium systems offer useful flexibility here, from traditional cast profiles for listed buildings to high-capacity extruded and pressed box gutters for contemporary and commercial work.

If the roof area, outlet positions or fascia condition leave any doubt, measure the run and levels before ordering. Gutters Direct can help match the profile, outlet arrangement and fitting approach to the building, whether the requirement is supply only, cut-and-drop or installation support. A few accurate marks at setting-out stage are far easier to make than a correction after the first heavy downpour.
